Tutorials

Quick-start

In this tutorial we will show

How to initialise the emulator
How to obtain multipoles for the standard $\Lambda$CDM cosmology

Let’s first import comet as well as other required libraries:

from comet import comet
import Numpy as np
import matplotlib.pyplot as plt

At initialisation we only need to specify the perturbation theory model that we want to use: valid specifiers are currently either "EFT" (effective field theory model) or "RS" (real-space model); for an overview of the models implemented in COMET, see here. Moreover, we can configure COMET either in $\mathrm{Mpc}$ units (use_Mpc = True, which is the default option) or in $h^{-1}\mathrm{Mpc}$ units (use_Mpc = False). All quantities that are not dimensionless are then returned or assumed to be given in the respective unit system. Let’s define an emulator object for the EFT model using the standard $h^{-1}\mathrm{Mpc}$ units:

EFT=comet(model="EFT", use_Mpc=False)

In order to make predictions for a given cosmological model we first need to specify the fiducial background cosmology, from which the Alcock-Paczynski distortions will be computed. This is done by calling the function define_fiducial_cosmology with a dictionary specifying the cosmological parameters and the redshift:

params_fid = {'h':0.695, 'wc':0.11544, 'wb':0.0222191, 'z':0.57}

# This assumes by default a "lambda" cosmology with w0 = -1, for other
# options, see the in-depth examples below.
EFT.define_fiducial_cosmology(params_fid=params_fid)

The function Pell, which returns the power spectrum multipoles takes generally three parameters:

The scales for which to compute the multipoles (in the corresponding units)
A parameter dictionary, specifying cosmological, bias, and (if applicable) additional redshift-space distortions parameters
The multipole number, i.e. ell = 0, 2, 4, or a list of multipole numbers

The parameter dictionary must include all shape parameters: the physical cold dark matter and baryon densities (wc and wb) and the scalar spectral index (ns). In case of a flat $\Lambda$CDM model we also need to specify values for $h$ (h), the amplitude of scalar fluctuations (As) and redshift (z). For other cosmologies, see In-depth options for obtaining multipoles.

# Let's create a parameter dictionary
params = {}

# We always need to specify the shape parameter values, e.g.
params['wc'] = 0.11544
params['wb'] = 0.0222191
params['ns'] = 0.9632

# For a LCDM cosmology, we also need:
params['h']  = 0.8
params['As'] = 2.3
params['z']  = 0.6

Finally, we define the values of the bias parameters. The complete list of parameters along with a brief explanation and their dictionary keywords can be found here. In the following we only specify values for the linear and quadratic bias, all other parameters are automatically set to zero:

params['b1'] = 2.
params['b2'] = -0.5

Now, let’s compute the monopole (ell=0), quadrupole (ell=2) and hexadecapole (ell=4) for a range of scales from $0.001\,h\,\mathrm{Mpc}^{−1}$ to $0.3\,h\,\mathrm{Mpc}^{−1}$:

k_hMpc = np.logspace(-3,np.log10(0.3),100)
Pell_LCDM = EFT.Pell(k_hMpc, params, ell=[0,2,4], de_model='lambda')

The output of Pell is given in a dictionary format:

print(Pell_LCDM.keys())

dict_keys(['ell0', 'ell2', 'ell4'])

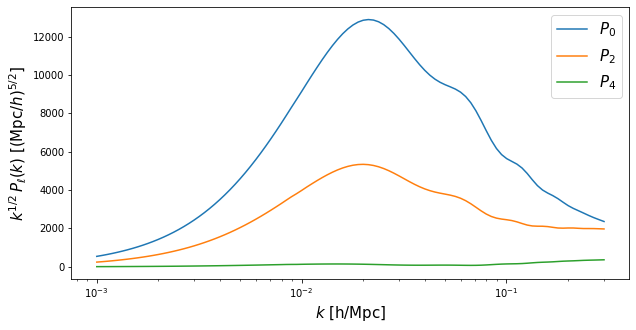

So we can access our results and plot them as follow.

f = plt.figure(figsize=(10,5))
ax = f.add_subplot(111)
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell0"],c='C0',ls='-',label='$P_0$')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell2"],c='C1',ls='-',label='$P_2$')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell4"],c='C2',ls='-',label='$P_4$')
ax.set_xlabel('$k$ [h/Mpc]',fontsize=15)
ax.set_ylabel(r'$k^{1/2}\,P_{\ell}(k)$ [$(\mathrm{Mpc}/h)^{5/2}$]',fontsize=15)
ax.legend(fontsize=15)
plt.show()

Exploring a few in-depth options

Let us now consider some of the more detailed options in ‘COMET’:

Specifying fiducial background cosmologies
Specifying Alcock-Paczynski parameters
Specifying the shot noise normalisation
Non-flat and non-$\Lambda$ cosmologies
Using the $f$-$\sigma_{12}$ parameter space
Options for providing different $k$-scales, float vs np.array vs list and the corresponding outputs
Description of the fixed_cosmo_boost function, i.e., speedup when just changing bias parameters
Using different bases for galaxy bias

Fiducial background cosmologies

Above, we specified the fiducial background cosmology by setting the values of $h$, $\omega_b$, $\omega_c$ and redshift $z$. Alternatively, we can directly provide the values of the Hubble rate $H_ {\rm fid}(z)$ and comoving transverse distance $D_{m,\rm fid}(z)$ as follows:

H_fid = 135    # in units of km/s/(Mpc/h)
Dm_fid = 1490  # in units of Mpc/h

EFT.define_fiducial_cosmology(HDm_fid=[H_fid, Dm_fid])

Note that the units of $H_{\rm fid}(z)$ and $D_{m,\rm fid}(z)$ need to be either in $\mathrm{km}\,\mathrm{s}^{-1}\,\mathrm{Mpc}^{-1}$ and $\mathrm{Mpc}$ (if use_Mpc=True), or $\mathrm{km}\,\mathrm{s}^{-1}\,(h^{-1}\mathrm{Mpc})^{-1}$ and $h^{-1}\mathrm{Mpc}$ (if use_Mpc=False).

Moreover, we stress that define_fiducial_cosmology is only used to set the fiducial cosmological parameter values. It cannot be used to set default parameter values for the evaluation of the model.

Alcock-Paczynski parameters

By default the values of the Alcock-Paczynski parameters, $q_{\parallel}$ and $q_{\perp}$, are computed based on the given cosmological parameters and the fiducial background values for the Hubble rate and comoving transverse distance. These values can be overwritten by explicitly providing the Alcock-Paczynski parameters as an argument to the Pell function:

q_para = 1.0
q_perp = 1.0

Pell_LCDM_noAP = EFT.Pell(k_hMpc, params, ell=[0,2,4], de_model='lambda', q_tr_lo=[q_perp,q_para])

This can be useful when one would like to ignore Alcock-Paczynski distortions.

Shot noise normalisation

By default the shot noise parameters in the power spectrum model are assumed to be given in units of $L^3$ for NP0 and $L^5$ for NP20 and NP22, where $L = (\mathrm{Mpc})^3$ (use_Mpc=True) or $L = (h^{-1}\mathrm{Mpc})^3$ (use_Mpc=False). It is possible to define a fixed normalisation scale (i.e., corresponding to the Poisson shot noise $1/\bar{n}$) as follows:

nbar = 1e-3  # in the respective units
EFT.define_nbar(nbar)

In this case NP0 is dimensionless, while NP20 and NP22 have dimension $L^2$.

Non-flat and non-$\Lambda$ cosmologies

Predictions for non-flat cosmologies can be obtained by simply specifying the curvature density parameter $\Omega_k$ in the parameter dictionary:

params['Ok'] = 0.05

For different dark energy models we need to provide a different de_model argument for the Pell function. For a non-time varying dark energy equation of state, we set de_model='w0', while for a time-varying equation of state in the $w_0$-$w_a$ parametrisation, we set de_model='w0wa'. In those cases we need to specify the corresponding values of $w_0$ and $w_a$ in the parameter dictionary. Let’s consider the following example:

params['w0'] = -1.1
params['wa'] = 0.1

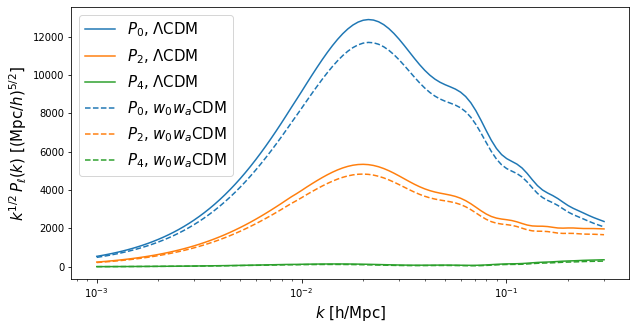

Then let’s recompute the model by updating the previously set parameter values and compare with the $\Lambda$CDM prediction:

Pell_w0wa = EFT.Pell(k_hMpc, params, ell=[0,2,4], de_model='w0wa')

f = plt.figure(figsize=(10,5))
ax = f.add_subplot(111)
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell0"],c='C0',ls='-',label='$P_0$, $\Lambda$CDM')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell2"],c='C1',ls='-',label='$P_2$, $\Lambda$CDM')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell4"],c='C2',ls='-',label='$P_4$, $\Lambda$CDM')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_w0wa["ell0"],c='C0',ls='--',label='$P_0$, $w_0 w_a$CDM')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_w0wa["ell2"],c='C1',ls='--',label='$P_2$, $w_0 w_a$CDM')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_w0wa["ell4"],c='C2',ls='--',label='$P_4$, $w_0 w_a$CDM')
ax.set_xlabel('$k$ [h/Mpc]',fontsize=15)
ax.set_ylabel(r'$k^{1/2}\,P_{\ell}(k)$ [$(\mathrm{Mpc}/h)^{5/2}$]',fontsize=15)
ax.legend(fontsize=15)
plt.show()

The $f$-$\sigma_{12}$ parameter space

When calling the Pell function for a specific dark energy model, it ignores any potential values of s12, q_tr, q_lo and f in the parameter dictionary and instead converts the $Lambda$CDM parameters to the $\sigma_{12}$ parameter space. The internal values of those parameters (which can be accessed via EFT.params) have therefore been updated:

# s12, q_tr, q_lo and f are computed internally!
EFT.params

{'wc': 0.11544,
'wb': 0.0222191,
'ns': 0.9632,
's12': 0.5644811904905519,
'f': 0.7025465611424653,
'b1': 2.0,
'b2': -0.5,
'g2': 0.0,
'g21': 0.0,
'c0': 0.0,
'c2': 0.0,
'c4': 0.0,
'cnlo': 0.0,
'NP0': 0.0,
'NP20': 0.0,
'NP22': 0.0,
'NB0': 0.0,
'MB0': 0.0,
'h': 0.8,
'As': 2.3,
'Ok': 0.05,
'w0': -1.1,
'wa': 0.1,
'z': 0.6,
'q_tr': 1.081799699202137,
'q_lo': 1.045999542223697}

If we want to use the $f$-$\sigma_{12}$ parameter space directly, we need to provide explicit values for s12, f, q_lo ($q_{\parallel}$) and q_tr ($q_{\perp}$). As an example, let’s redefine our parameter values:

# For predictions using the RSD parameter space we also need to specify values for the following four parameters, e.g.
params['s12']  = 0.6
params['q_lo'] = 1.1
params['q_tr'] = 0.9
params['f']    = 0.7

Pell_s12 = EFT.Pell(k_hMpc, params, ell=[0,2,4])

Note

When computing the multipoles using the $\sigma_{12}$ parameter space and in $h^{-1}\mathrm{Mpc}$ units, we need to specify a fiducial value for the Hubble rate (provided in the parameter dictionary). This is required to convert the native emulator output from $\mathrm{Mpc}$ to $h^{-1}\mathrm{Mpc}$ units.

f = plt.figure(figsize=(10,5))
ax = f.add_subplot(111)
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell0"],c='C0',ls='-',label='P0')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell2"],c='C1',ls='-',label='P2')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_LCDM["ell4"],c='C2',ls='-',label='P4')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_s12["ell0"],c='C0',ls='--')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_s12["ell2"],c='C1',ls='--')
ax.semilogx(k_hMpc, k_hMpc**0.5*Pell_s12["ell4"],c='C2',ls='--')
ax.set_xlabel('$k$ [h/Mpc]',fontsize=15)
ax.set_ylabel(r'$k^{1/2}\,P_{\ell}(k)$ [$(\mathrm{Mpc}/h)^{5/2}$]',fontsize=15)
ax.legend(fontsize=15)
plt.show()

Providing different $k$-scales

There are multiple options for specifying the scales for which to compute the multipoles: if given as a number or Numpy array all specified multipoles will be computed for those scales, if given as a list, however, then the first entry of the list is evaluated for the first multipole, the second for the second multipole, etc.

We can output at a single scale and single multipole number, e.g. for the quadrupole at $k = 0.1\,h\,\mathrm{Mpc}^{-1}$:

EFT.Pell(0.1, params, ell=2)

{'ell2': array([12734.58552054])}

Or for various multipoles and multiple scales:

EFT.Pell(np.array([0.1,0.2,0.3]), params, ell=[0,2,4])

{'ell0': array([21993.36193293,  8421.42627781,  5055.15969128]),
 'ell2': array([12734.58552054,  7163.04358551,  5357.26768927]),
 'ell4': array([3027.98356766, 2244.35964221, 1870.99204263])}

Or at different scales for different multipoles (providing a list of numbers or Numpy arrays):

EFT.Pell([np.array([0.1,0.2]),0.3], params, ell=[0,4])

{'ell0': array([21993.36193293,  8421.42627781]),
 'ell4': array([1870.99204263])}

Note

In case kmax is given as a list, its length must match the length of the specified multipoles (ell).

Hint

Performance-wise it is advisable to compute all required multipoles and scales via the same function call (i.e., avoid calling Pell for individual wavemodes).

Speedup when changing just bias parameters

It is a common task to test the models at fixed cosmological parameters, and in that case COMET provides the function Pell_fixed_cosmo_boost, which accelerates the model computation. It computes all individual model contributions, which are kept fixed as long as the cosmological parameters are not changed, such that changing the bias parameters only is sped up drastically. In the following cells the differences on time can be seen, which reflects a speed up of around 3 orders of magnitude.

%timeit EFT.Pell(k_hMpc, params, ell=[0,2,4], de_model="lambda")

5.19 ms ± 8.59 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)

%timeit EFT.Pell_fixed_cosmo_boost(k_hMpc, params, ell=[0,2,4], de_model="lambda")

9.46 µs ± 10.3 ns per loop (mean ± std. dev. of 7 runs, 100,000 loops each)

Note

Since the computation of all the individual contributions takes more time than the direct evaluation of the multipoles, this is really only useful at fixed cosmological parameters (or for samplers that can exploit a speed hierarchy).

Using different bases for galaxy bias

By default COMET uses the galaxy bias expansion proposed in Eggemeier et al. (2019), but it is also possible to specify bias parameters of two other bases from:

Assassi et al. (2014), used e.g. in the analysis by Ivanov et al. (2019)
d’Amico et al. (2019)

The bias basis is defined at initialisation using the argument bias_basis, which can take the strings "EggScoSmi" (for the Eggemeier et al. basis), "AssBauGre" (for the Assassi et al. basis), or "AmiGleKok" (for the D’Amico et al. basis). It is also possible to change the bias basis later via the function change_bias_basis, e.g.:

EFT.change_bias_basis("AssBauGre")

Changing the bias basis changes the parameter dictionary keys that need to be provided. The full list of available bias keys can be printed as follows:

print(EFT.bias_params_list)

['b1', 'b2', 'bG2', 'bGam3', 'c0', 'c2', 'c4', 'cnlo', 'NP0', 'NP20', 'NP22', 'NB0', 'MB0']

In this case we now need to provide values for 'bG2' and 'bGam3', i.e., parameters for 'g2' and 'g21' are now ignored. In case of the d’Amico et al. basis we have:

EFT.change_bias_basis("AmiGleKok")
print(EFT.bias_params_list)

['b1t', 'b2t', 'b3t', 'b4t', 'c0', 'c2', 'c4', 'cnlo', 'NP0', 'NP20', 'NP22', 'NB0', 'MB0']

Let’s change back to the default for the remainder of the tutorial:

EFT.change_bias_basis("EggScoSmi")

Beyond $P_{\ell}$ predictions

In the following we demonstrate a number of additional outputs that COMET can provide. Specifically:

The linear power spectrum, with and without infra-red resummation
The Gaussian covariance matrix for the power spectrum multipoles
The tree-level bispectrum multipoles

Linear power spectrum

The linear power spectrum (no infra-red resummation; simply the emulated CAMB output) can be obtained from the function PL, while the linear power spectrum with damped BAO wiggles (infra-red resummation) can be obtained from the function Pdw (note: this is not the smooth, no-wiggle power spectrum). The arguments are identical to those of Pell with the exception that we no longer need to specify a multipole number.

k = np.logspace(-3,np.log10(0.4),300)
Pdw = EFT.Pdw(params=params, k=k, de_model='lambda')
PL = EFT.PL(params=params, k=k, de_model='lambda')

Let’s plot the ratio of the de-wiggled linear power spectrum over the linear power spectrum:

f = plt.figure(figsize=(10,5))
ax = f.add_subplot(111)
ax.semilogx(k, Pdw/PL,c='C0',ls='-')
ax.set_xlabel('$k$ [h/Mpc]',fontsize=15)
ax.set_ylabel(r'$P_{\rm dw}(k)/P_{L}(k)$',fontsize=15)
plt.show()

Tree-level bispectrum

COMET can also output the tree-level bispectrum (in real-space, for the RS model) and its multipoles (in redshift-space, for the EFT model). These predictions are not emulated, but computed from the emulated de-wiggled power spectrum directly. For that purpose we provide the function Bell and in order to demonstrate its usage let’s first generate a set of triangle configurations:

k_hMpc_lin = np.arange(0.005, 0.3, 0.005)
tri =[]
for i1,k1 in enumerate(k_hMpc_lin):
    for i2,k2 in enumerate(k_hMpc_lin[:i1+1]):
        for i3,k3 in enumerate(k_hMpc_lin[:i2+1]):
            if k2 + k3 >= k1:
                tri.append([k1, k2, k3])
tri=np.asarray(tri)

The Bell function has the same arguments and functionality as the analogous Pell function for the power spectrum. However, it expects the triangle configurations to be always specified as a Numpy array containing $k_1$, $k_2$, $k_3$ (it is not possible to evaluate the multipoles for different triangles at the moment), and in addition it includes the argument kfun, which is used for compressing the number of unique k-modes and is ideally chosen as a value that corresponds closely to the spacing between configurations (e.g. the bin-width for measured data), but must not be much larger. If in doubt, use a value much smaller than the typical spacing.

params['h'] = 0.69
params['z'] = 0.57
Bell = EFT.Bell(tri, params=params, ell=[0,2,4], de_model='lambda', kfun=0.005)

Note

The very first call of Bell for a given set of configurations can take a little longer (depending on the total number of triangle configurations) as some lookup-tables are generated. All subsequent calls, even with changing cosmological parameters, are then much faster. That implicitly means that one should avoid calling Bell multiple times with different triangle configurations, but once for all triangle configurations.

fig, axs = plt.subplots(3,1, figsize=(10,5), sharex=True,)
for i in range(3):
    axs[i].semilogy(np.arange(tri.shape[0]), Bell["ell"+str(2*i)],c='C'+str(2*i),ls='-')
    axs[i].set_ylabel(f'$B_{i*2}(k)$',fontsize=15)

fig.tight_layout()
plt.subplots_adjust(wspace=0, hspace=0)
axs[-1].set_xlabel('Triangle index - $k$ [h/Mpc]',fontsize=15)
plt.show()

Computing covariance matrices

Apart from the multipoles we can also generate (Gaussian) covariance matrices, for which there are again different flags, that are either defined for the $\sigma_{12}$ or the dark energy parameter spaces. For the power spectrum, the first three arguments, k, params, and ell, are identical to those for Pell. In addition, we need to specify a binwidth dk and volume (both of which need to be given in the respective units for which the emulator is configured in), for example:

dk_hMpc = 0.005
k_hMpc_lin = np.arange(0.001, 0.3, dk_hMpc)
vol_hMpc = 3e9

Cov_hMpc = EFT.Pell_covariance(k_hMpc_lin, params, ell=[0,2,4], dk=dk_hMpc, volume=vol_hMpc)

plt.figure(figsize=(9,6))
plt.title(r"")
plt.title(r"Correlation Matrix")
var_inv = np.diag(1./np.sqrt(np.diag(Cov_hMpc)))
R_hMpc = var_inv @ Cov_hMpc @ var_inv
plt.imshow(R_hMpc,cmap='magma_r')
plt.show()

The argument specifying the scales provides the same functionality as for Pell, that is, it can either be given as a number or Numpy array, in which case all specified multipoles are evaluated for the same scales, or a list of numbers/Numpy arrays, in which case the first entry is evaluated for the first multipole in ell etc.

For the version with specified dark energy model it is also possible (in addition to providing the volume via the volume argument) to provide minimum and maximum redshifts, zmin and zmax, a sky fraction fsky, and a volume scaling factor volfac (by default equal to 1), such that the volume is computed in accordance with the given cosmological model. For example:

Cov_hMpc_LCDM = EFT.Pell_covariance(
                        k_hMpc,
                        params,
                        ell=[0,2,4],
                        dk=2*np.pi/3780,
                        zmin=params['z']-0.1,
                        zmax=params['z']+0.1,
                        fsky=15000./(360**2/np.pi),
                        volfac=1,
                        de_model="lambda",
                )

As a further extension, in the case when using measurements from a periodic box that have been averaged over different lines of sight, we have added the averaging corrections for the covariance matrix. We have created the flags avg_cov (set to False by default) and avg_los (set to 3 by default) for the Pell_covariance function, so that when avg_cov=True it by default will compute the average along the three perpendicular axes (x,y,z), but it is also possible to average over just 2 directions. Note that this computation is quite slow since it involves a different integral for each k-bin, it may be optimised in the future.

Similarly, we can compute the Gaussian covariance matrix of the bispectrum using the function Bell_covariance. Apart from the first argument, which specifies the triangle configurations (or a list of configurations for different multipoles), the arguments are identical to those of Pell_covariance. In addition, one can also specify kfun as in case of Bell (see above), which by default is set to the bin width dk. Let us compute the bispectrum covariance matrix for a reduced set of triangle configurations with different scale cuts for the monopole, quadrupole, and hexadecapole:

id0p1 = np.where(tri[:,0] < 0.1)
id0p06 = np.where(tri[:,0] < 0.06)
id0p03 = np.where(tri[:,0] < 0.03)

# using the same scale cut for all multipoles
Cov_Bisp_hMpc = EFT.Bell_covariance(tri[id0p1], params, ell=[0,2,4], dk=0.005, de_model='lambda',
                                    kfun=0.005, volume=3e9)

# using different scale cuts
Cov_Bisp_hMpc_diff_scale_cut = EFT.Bell_covariance([tri[id0p1],tri[id0p06],tri[id0p03]], params, ell=[0,2,4], dk=0.005, de_model='lambda',
                                    kfun=0.005, volume=3e9)

In the Gaussian approximation each block in the bispectrum covariance matrix is diagonal. Let’s plot these diagonals as a function of the triangle configuration index:

fig, axs = plt.subplots(2,3, figsize=(10,5), sharex=True, sharey=True)

ntri = id0p1[0].shape[0]

labels = ['$C_{00}$', '$C_{22}$', '$C_{44}$', '$C_{02}$', '$C_{04}$', '$C_{24}$']
colors = ['C0','C1','C2','C3','C4','C5']
for i in range(3):
    axs[0,i].semilogy(np.arange(ntri), np.diag(Cov_Bisp_hMpc[i*ntri:(i+1)*ntri,i*ntri:(i+1)*ntri]), c=colors[i], label=labels[i])
    axs[0,i].legend(fontsize=15)

n = 0
for i in range(2):
    for j in range(i,3):
        if i != j:
            axs[1,n].semilogy(np.arange(ntri), np.diag(Cov_Bisp_hMpc[i*ntri:(i+1)*ntri,j*ntri:(j+1)*ntri]), c=colors[n+3], label=labels[n+3])
            axs[1,n].legend(fontsize=15)
            axs[1,n].set_xlabel('Triangle Index',fontsize=15)
            n += 1

fig.tight_layout()
plt.subplots_adjust(wspace=0, hspace=0)

Hint

Note that both, Pell_covariance and Bell_covariance, allow also to specify the number of fundamental modes and fundamental triangle per bin, respectively. This is possible by using the optional arguments Nmodes and Ntri, which should be an array of the same length as either k or `tri (and if either of these is given as a list, it should match the length of the longest entry in the list of scales or triangle configurations). If not provided, the following approximations are assumed when computing the covariance matrix:

\[\begin{split}N_{\rm modes} \approx \frac{V}{6 \pi^2}\,\left[\left(k+\frac{\Delta k}{2}\right)^3 - \left(k-\frac{\Delta k}{2}\right)^3\right]\,, \\[1.5em] N_{\rm tri} \approx \frac{V^2}{8 \pi^4}\,k_1\,k_2\,k_3\,\Delta k^3\,.\end{split}\]

Working with data sets

Loading data

We can load measurements of the power spectrum and bispectrum multipoles into COMET using the define_data_set function. This function takes first an identifier for the data set (obs_id; this can be anything, it will be used to reference the data) and any one of the following arguments:

stat. Can either be ‘powerspectrum’ or ‘bispectrum’; if not provided, stat is deduced from the number of columns in bins (see below).
bins. In case of the power spectrum: 1d-array of k-modes corresponding to the measurements; in case of the bispectrum: 2d-array with three columns corresponding to the triangle configuration ($k_1$, $k_2$, $k_3$) of the measurements.
signal. The measurements of the power spectrum or bispectrum; the size of the first dimension must match the size of bins, and it is assumed that the first column corresponds to the monopole, the second to the quadrupole, and the third to the hexadecapole (one does not need to provide all three multipoles, i.e., one can provide only the monopole, or monopole + quadrupole, but one cannot leave out preceding multipoles).
cov. The covariance matrix of the measurements, which must match the combined size of all given multipoles. If the dimension of cov is one-dimensional, it is assumed to be the diagonal of the covariance matrix.
theory_cov. A flag that specifies whether the given covariance matrix was derived analytically or from a set of simulation measurements. In the latter case an Anderson-Hartlap correction is applied to the inverse, based on n_realizations.
n_realizations. Number of realizations from which the covariance matrix was estimated, only used (and required) in case theory_cov=False.

Let us load some mock power spectrum measurements:

# Let's call this data set 'mock_Pk'
EFT.define_data_set(obs_id='mock_Pk', bins=k, signal=np.array([P0,P2,P4]).T, cov=Cov, theory_cov=False, n_realizations=300)

We can access the data through EFT.data['mock_Pk'] and check, for example, that the type of statistic was correctly identified (since it was provided above):

EFT.data['mock_Pk'].stat

Computing the $\chi^2$

Finally, we can let COMET directly compute $\chi^2$ values based on the provided data set, a given set of model parameters and range of scales.

To do so, we call the function chi2, which takes as arguments the identifier of the data set, the parameter dictionary, a maximum k-mode value kmax, a model argument de_model. kmax can either be a number, in which case the same cutoff is applied for all multipoles, or a list of numbers for each individual multipole, as for the multipoles case. If the cutoff is zero (or smaller than the minimum scale of the observations) for a particular multipole, then it is excluded from the computation of the chi-square. kmax is also assumed to be in the units of the emulator. de_model can be one of the options specified before.

EFT.chi2(obs_id='mock_Pk',params=params, kmax=[0.30, 0.30, 0.30], de_model='lambda')

6754.176546673202

Moreover, in order to speed up the computation of the $\chi^2$, in the same way as Pell_fixed_cosmo_boost function, we can specify the flag chi2_decomposition in order to avoid recomputing the quantities depending on cosmological parameters. Let’s see how it works

%timeit EFT.chi2(obs_id='mock_Pk',params=params, kmax=[0.30, 0.30, 0.30], de_model='lambda', chi2_decomposition=False)

6.37 ms ± 153 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)

%timeit EFT.chi2(obs_id='mock_Pk',params=params, kmax=[0.30, 0.30, 0.30], de_model='lambda', chi2_decomposition=True)

9.11 µs ± 20.6 ns per loop (mean ± std. dev. of 7 runs, 100,000 loops each)

It is also possible to compute the $\chi^2$ for multiple data sets by giving chi2 a list of data identifiers. While in principle this could be useful to simultaneously analyse multiple power spectrum measurements at different redshifts, COMET currently does not support multiple parameter sets with different bias parameters, or at various redshifts (this will be possible in a future release). However, we can use this functionality to compute the joint $\chi^2$ of the power spectrum and bispectrum.

As an example, let’s load some mock bispectrum data and store it in a new data container:

# data format: k1, k2, k3, B0, B0_var, B2, B2_var, B4, B4_var
data = np.loadtxt('mock_Bk_mean.dat')

EFT.define_data_set(obs_id='mock_Bk', bins=data[:,:3], signal=data[:,[3,5,7]], cov=np.hstack(data[:,[4,6,8]]), kfun=0.00166)

When providing a list of data identifiers, the kmax argument passed to chi2 can be a dictionary of $k_{\rm max}$ values, where the keys must match the data identifiers. If not given as a dictionary, the same $k_{\rm max}$ is used for each of the data sets. The following call of chi2 evaluates the $\chi^2$ for the power spectrum and bispectrum data sets, using the power spectrum monopole and quadrupole up to $k_{\rm max} = 0.3$ and $0.25\,h\,\mathrm{Mpc}^{-1}$, respectively, and the bispectrum monopole and hexadecapole up to $k_{\rm max} = 0.12$ and $0.05\,h\mathrm{Mpc}^{-1}$:

EFT.chi2(['mock_Pk','mock_Bk'], params, {'mock_Pk':[0.3,0.25,0.], 'mock_Bk':[0.12,0.0,0.05]}, de_model='lambda')

65495175908.83485

Note

The option chi2_decomposition is currently not available for the bispectrum.

Convolution with survey window function

In order to compare the power spectrum model predictions to some actual measurements, we need to convolve with the survey window function. This can be done within COMET by providing a window function mixing matrix $W_{\ell\ell'}(k,k')$ that connects the convolved and unconvolved power spectra via a simple matrix multiplication (see e.g. d’Amico et al. 2019):

\[P_{W,\ell}(k) = W_{\ell\ell'}(k,k') \cdot P_{\ell'}(k')\,,\]

where the summation over multipole numbers is implicit.

The mixing matrix and the associated scales for which it has been computed, $k$ and $k'$, can be specified via define_data_set using the arguments bins_mixing_matrix and W_mixing_matrix. The former is a list, containing the arrays for $k$ and $k'$. For example:

# Let's load some sample window function and k_prime values
W = np.fromfile('mock_Pk_window_W.npy').reshape((216, 4854))
k_prime = np.loadtxt('mock_Pk_window_kp.dat')

# The mixing matrix was computed for the following k-scales
k = np.arange(1,73)*2*np.pi/1500

# Load everything into COMET using the same data identifier as before ('mock_Pk')
EFT.define_data_set(obs_id='mock_Pk', bins_mixing_matrix=[k, k_prime], W_mixing_matrix=W)

We can now obtain the window-convolved power spectrum by passing the additional argument obs_id to Pell (the same functionality applies also to Pell_fixed_cosmo_boost) using the corresponding data identifier:

P_unconv = EFT.Pell(k, params, ell=[0,2,4], de_model='lambda')                  # unconvolved, equivalent with obs_id=None
P_conv = EFT.Pell(k, params, ell=[0,2,4], de_model='lambda', obs_id='mock_Pk')  # convolved with window function for data set 'mock_Pk'

f = plt.figure(figsize=(10,5))
ax = f.add_subplot(111)
ax.plot(k, k*P_unconv['ell0'],c='C0',ls='-',label='$P_{0}$')
ax.plot(k, k*P_conv['ell0'],c='C0',ls='--',label='$P_{W,0}$')
ax.plot(k, k*P_unconv['ell2'],c='C1',ls='-',label='$P_{2}$')
ax.plot(k, k*P_conv['ell2'],c='C1',ls='--',label='$P_{W,2}$')
ax.plot(k, k*P_unconv['ell4'],c='C2',ls='-',label='$P_{4}$')
ax.plot(k, k*P_conv['ell4'],c='C2',ls='--',label='$P_{W,4}$')
ax.set_xlabel('$k$ [h/Mpc]',fontsize=15)
ax.set_ylabel(r'$k\,P_{\ell}(k)$ [$(\mathrm{Mpc}/h)^{2}$]',fontsize=15)
ax.legend(fontsize=15,ncol=3)

We can also take the window function convolution into account when computing the $\chi^2$. In that case we set the flag convolve_window=True (by default it is set to False):

EFT.chi2(obs_id='mock_Pk',params=params, kmax=[0.30, 0.30, 0.30], de_model='lambda', convolve_window=True)

This also works in combination with the option chi2_decomposition=True.

Tutorials

Quick-start

Exploring a few in-depth options

Fiducial background cosmologies

Alcock-Paczynski parameters

Shot noise normalisation

Non-flat and non-\(\Lambda\) cosmologies

The \(f\)-\(\sigma_{12}\) parameter space

Providing different \(k\)-scales

Speedup when changing just bias parameters

Using different bases for galaxy bias

Beyond \(P_{\ell}\) predictions

Linear power spectrum

Tree-level bispectrum

Computing covariance matrices

Working with data sets

Loading data

Computing the \(\chi^2\)

Convolution with survey window function
